Dynamic projected turn signal for increased road safety

May 07, 2024

In recent years, micro-optical projectors have become well established for automotive applications. These projectors enable cars to communicate with their surroundings. Researchers at Fraunhofer Institute for Applied Optics and Precision Engineering IOF have now developed a dynamic indicator light that guarantees maximum visibility in a compact form, even under daylight conditions.

Blind spots, small turn signals or poor visibility - there are many reasons why risky situations might occur between participants in road traffic, for example when a cyclist overlooks the turn signal of a car pulling out.

Researchers at Fraunhofer IOF have now developed a projected turn signal that achieves an illuminance of over seven thousand lux with a size of just 35 x 35 x 55 millimeters. "This high level of illumination, together with the dynamic chase-light effect of the chevrons, makes the indicators visible even in daylight," explains Rohan Kundu, scientist in the Department of Optical and Mechanical System Design.

The design approach developed at Fraunhofer IOF overcomes key challenges in applications with micro-optical projectors: Buried, absorptive mask layers in conventional projection systems lead to transmission losses, a complex and costly manufacturing process, and a reduced service life of the projectors. The researchers at Fraunhofer IOF have completely removed these masks in the development of the projected blinker and shifted the pattern generation and beam shaping to microlens arrays (MLA).

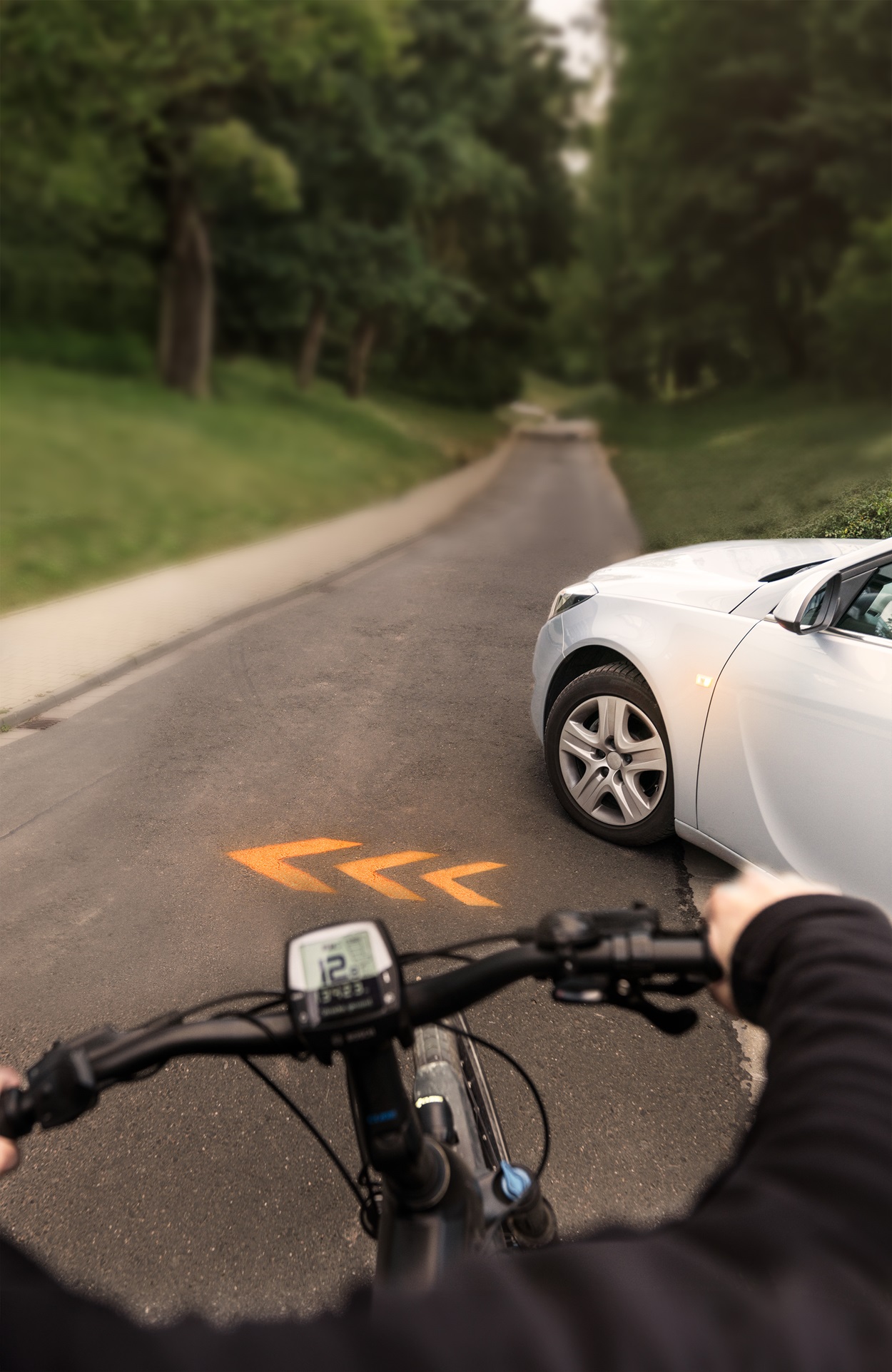

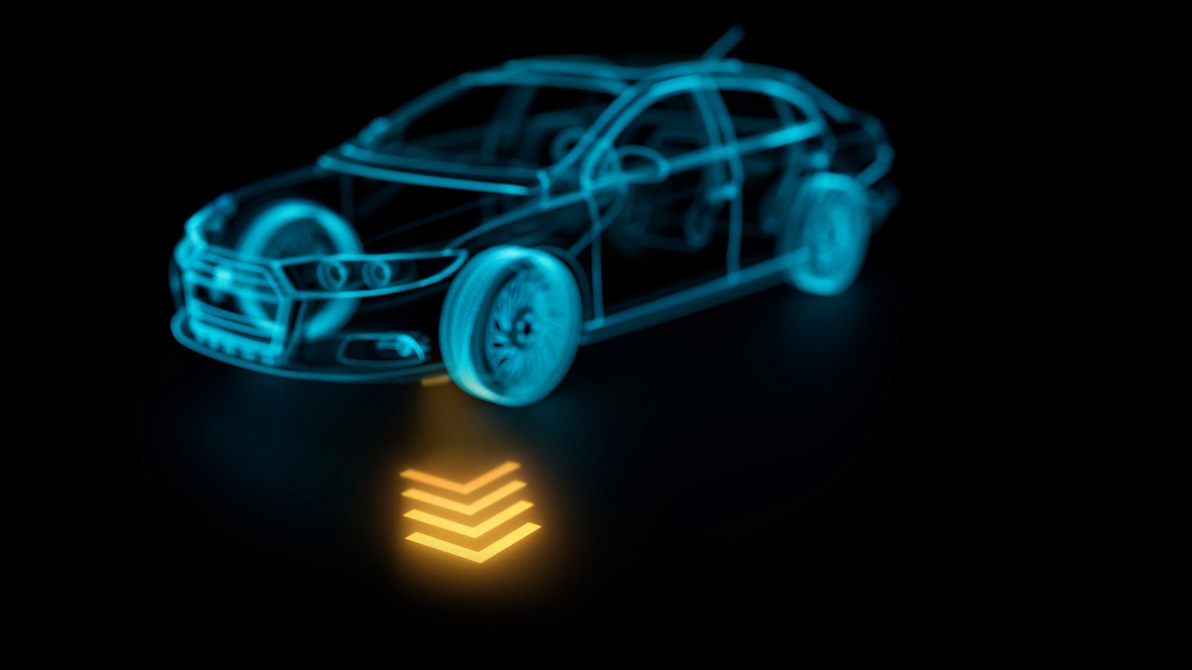

The turn signal is projected onto the road in a dynamic movement and indicates when the car is changing direction. Thanks to the high luminous intensity, the signal is clearly visible even in daylight.
© Fraunhofer IOF

Design enables highest possible visibility and dynamic light sequences

The two-sided MLA consists of an arrangement of chevron-shaped microlenses (lenslets) on the light input side and smaller square lenslets on the output side. By illuminating the MLA at different angles of incidence, light paths are directed between specific combinations of input and output lenslets. This intentional channel crosstalk enables the projection of a dynamic sequence of chevrons on the road. The design approach allows a single projector system to produce multiple chevrons at different positions, simplifying installation and reducing costs and space requirements.

The two-sided micro-optical arrays are produced by grayscale lithography (mastering). They are then replicated as polymer-on-glass tandem arrays. The combination of polymer and glass enables precise control of the optical properties, as the polymer material can be specifically applied and molded onto the glass surface.

Simplified manufacturing processes and traffic safety

According to the researchers at Fraunhofer IOF, the tandem arrays can also be manufactured using less expensive technologies. "The use of very cost-effective processes such as injection molding or hot embossing enables the production of larger and on optionally curved substrates with only minimal loss of optical quality," explains Rohan Kundu.

In recent years, micro-optical projectors have become established for many street projection applications. They can be highly miniaturized and are suitable for so-called Car2X communication. Projected patterns enable the car to communicate with its surroundings, be it other cars, pedestrians, or cyclists. The dynamic turn signal developed can therefore contribute to increased road safety. The projection systems continue to represent a key technology for intelligent transportation systems in the future, such as autonomously driving cars.
